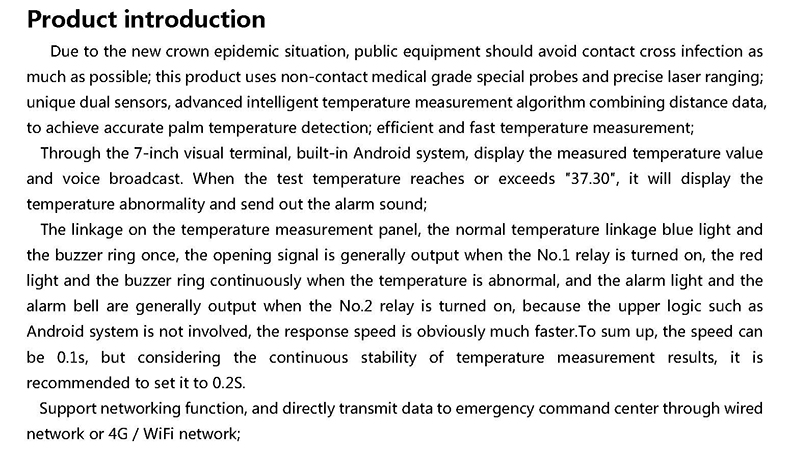

Product introduction

     Due to the new crown epidemic situation, public equipment should avoid contact cross infection as much as possible; this product uses non-contact medical grade special probes and precise laser ranging; unique dual sensors, advanced intelligent temperature measurement algorithm combining distance data, to achieve accurate palm temperature detection; efficient and fast temperature measurement;

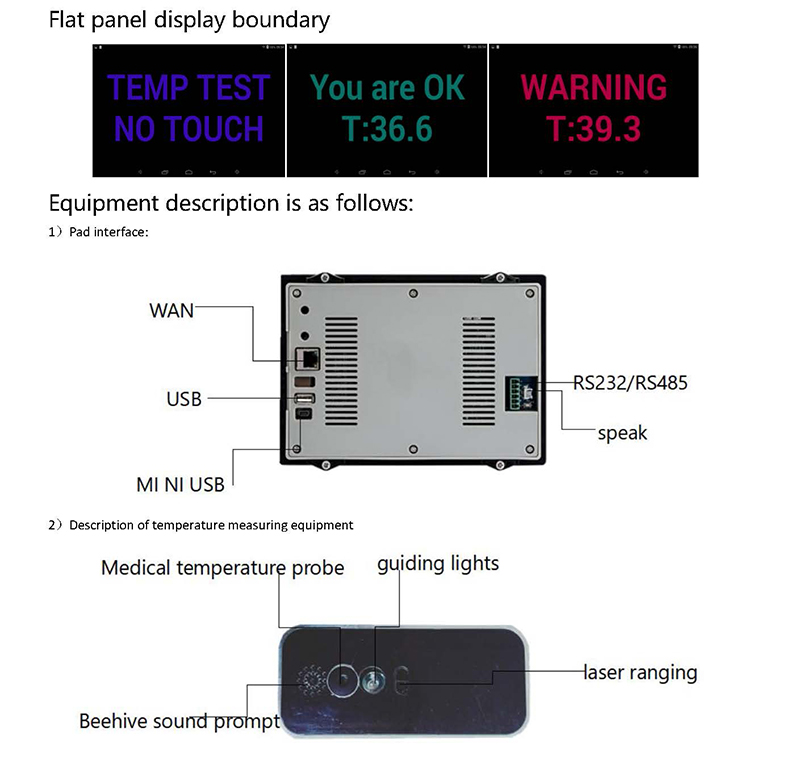

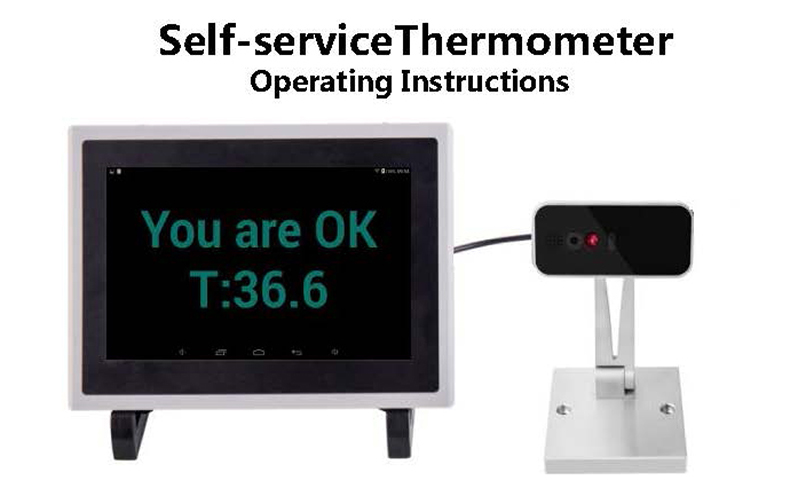

   Through the 7-inch visual terminal, built-in Android system, display the measured temperature value and voice broadcast. When the test temperature reaches or exceeds "37.30", it will display the temperature abnormality and send out the alarm sound;

    The linkage on the temperature measurement panel, the normal temperature linkage blue light and the buzzer ring once, the opening signal is generally output when the No.1 relay is turned on, the red light and the buzzer ring continuously when the temperature is abnormal, and the alarm light and the alarm bell are generally output when the No.2 relay is turned on, because the upper logic such as Android system is not involved, the response speed is obviously much faster.To sum up, the speed can be 0.1s, but considering the continuous stability of temperature measurement results, it is recommended to set it to 0.2S.

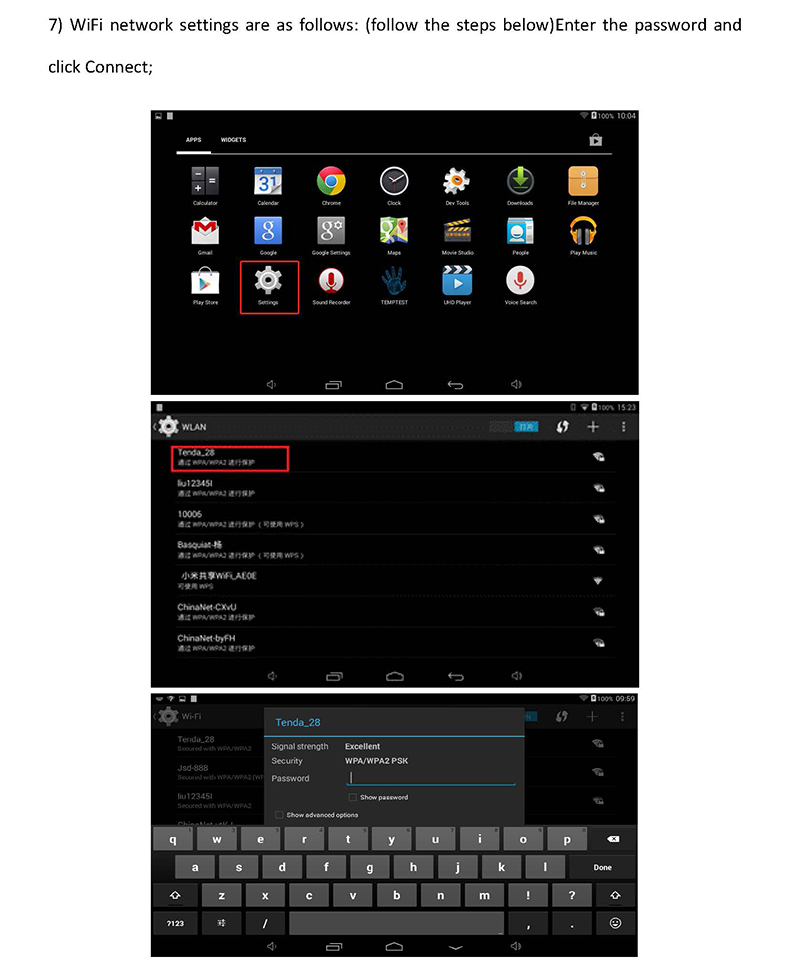

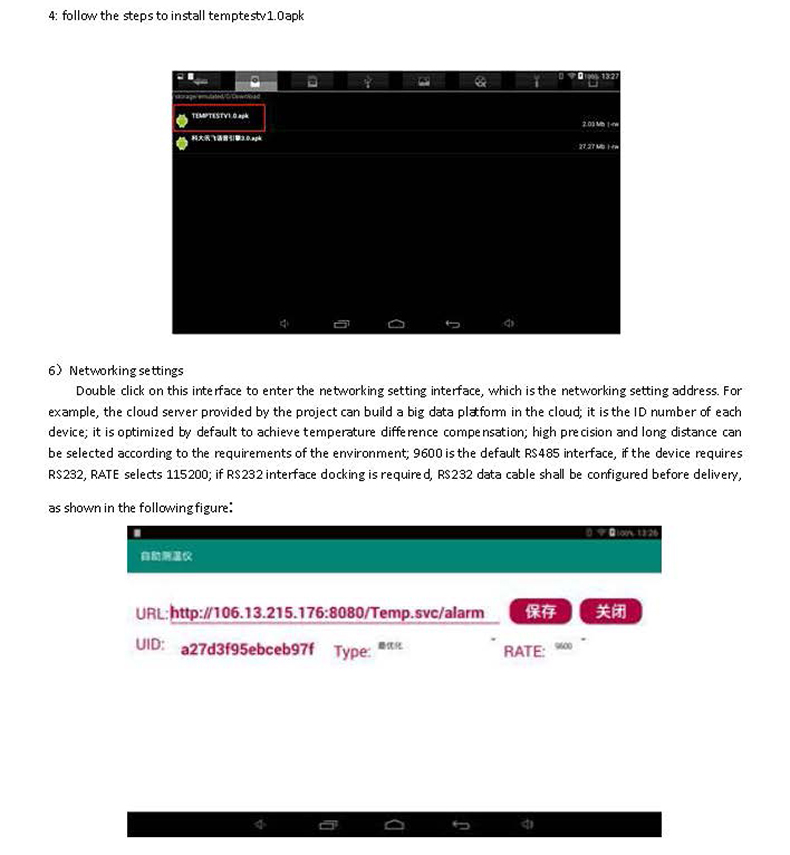

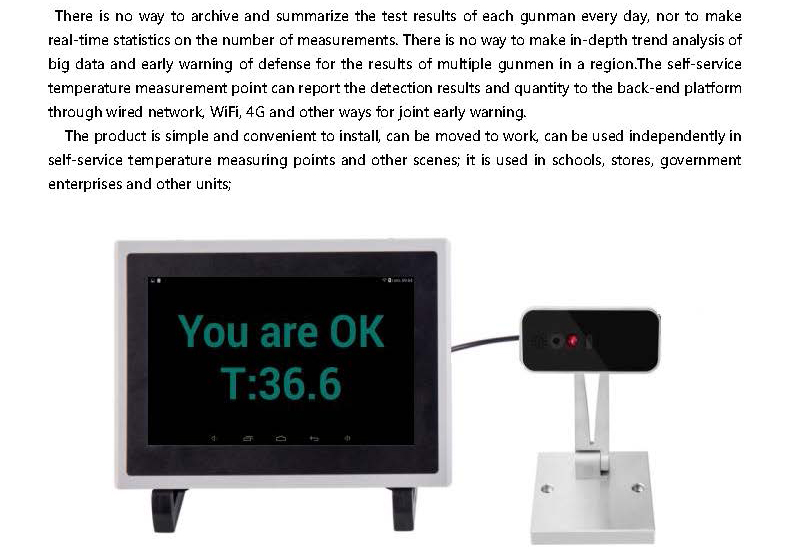

   Support networking function, and directly transmit data to emergency command center through wired network or 4G / WiFi network;

1、 Medical grade industrial temperature probe

With the probe imported from Germany, by distance of 5-15 cm it can reach the accuracyof 0.1-0.2 degree of medical grade.Industrial grade probe can work continuously for 24 hours, and there is no limit on the number of launches of the probe.One of the most important reasons why a consumer grade Potable Thermometer should be gun type is that the accuracy of the probe of the Potable Thermometer will gradually decline when it is used hundreds of thousands of times.The original forehead temperature gun is generally used in the home environment, and there is no effect on the weekly or monthly measurement.But for commercial occasions, the number of thousands of tests a day is basically not applicable.

2、 Man machine separation and self-service temperature measurement

    The biggest problem of Potable Thermometer is one shot by one hand. If a confirmed person is detected, the gun holder is quite likely to be reinfected. Once he or she becomes asymptomatic, it may affect most of the people in a community, a school and become super communicators.We use fixed-point or mobile self-service temperature measurement points. The process of temperature measurement does not need close contact by security personnel, but only needs to show concern in the range of 15-30 meters. Only the abnormal personnel can handle it on site.

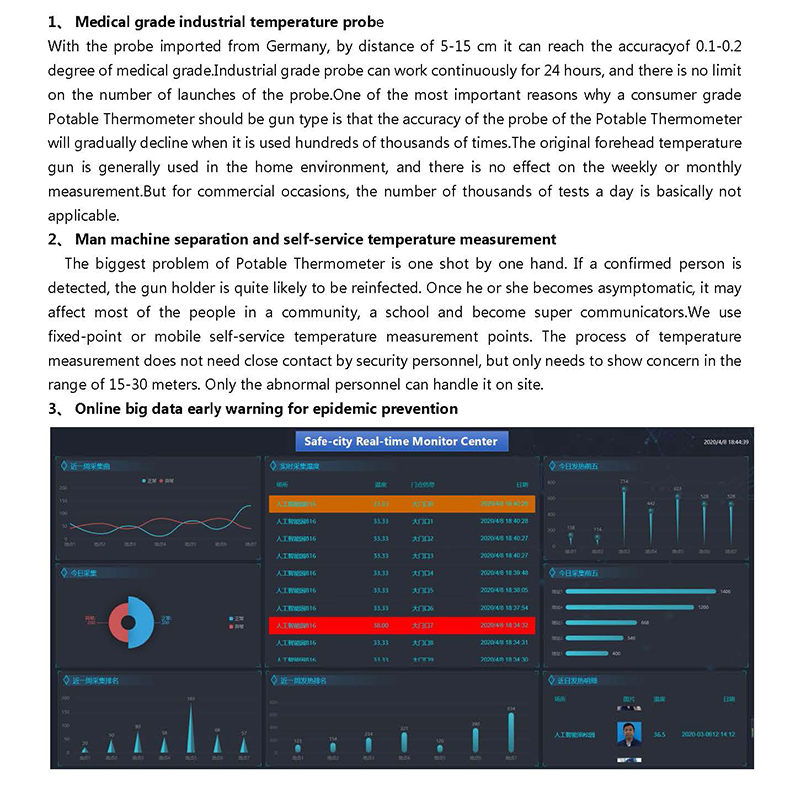

3、 Online big data early warning for epidemic prevention
